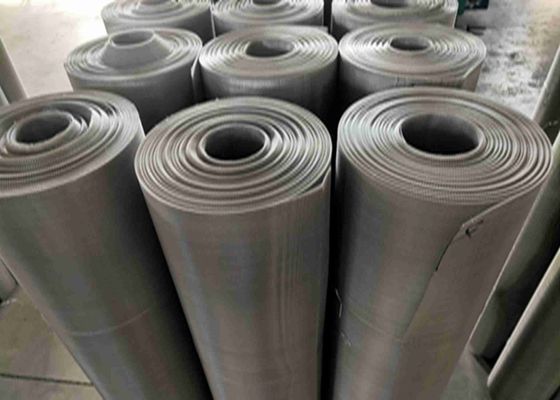

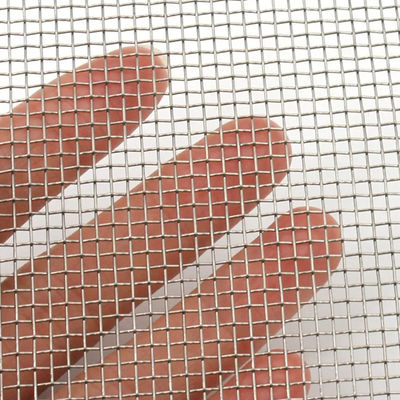

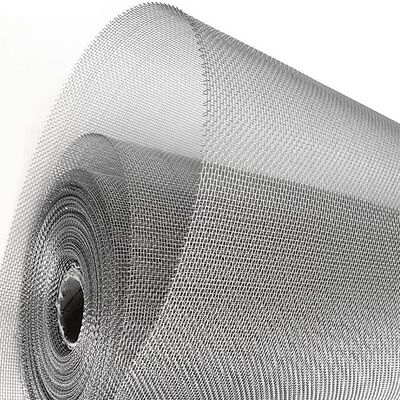

SS Woven Wire Mesh stainless steel mesh with excellent tensile resistance and smooth surface for long service life and easy cleaning
| Luogo di origine | Anping della Cina |
|---|---|
| Marca | QIANPU |
| Certificazione | ISO |
| Quantità di ordine minimo | 10rolls |
| Prezzo | negotiable |
| Imballaggi particolari | Interno con un tubo di carta, esterno con il film plastico o la carta impermeabile, poi in caso o pa |
| Tempi di consegna | UNA SETTIMANA |
| Termini di pagamento | T/T, L/C, Western Union |
Dettagli
| Materiale | SS304, SS304L, SS316, SS316L | Diametro del filo | 0,15 mm – 2,0 mm |
|---|---|---|---|
| Conta mesh | 2 – 400 maglie | dimensione di apertura | 0,038 mm – 10 mm |
| Misura standard | Rotolo da 1m×30m (personalizzabile) | Tipo di tessitura | Tessitura normale / Tessitura saia / Tessitura olandese |
| Evidenziare | stainless steel woven wire mesh,SS wire mesh with tensile resistance,smooth surface wire mesh for cleaning |
||
Descrizione di prodotto
Woven mesh is a net-like product made by interweaving or twisting filamentary materials such as metal wires and fiber wires. Its core advantages are stable structure, good permeability, high strength, corrosion resistance and easy processing. It is widely used in industrial and civil scenarios such as filtration and screening, protection and reinforcement, load-bearing and transportation, as well as decoration and beautification.
Main Types and Materials
By Material
Stainless steel mesh (304/316L)
Galvanized/iron wire mesh
Copper/brass mesh
Nylon/chemical fiber mesh
By Weaving Process
Plain weave mesh
Twill weave mesh
Dutch weave mesh
Crimped wire mesh
Chain link mesh/twisted wire mesh
Core Advantages
High strength & tensile resistance: Metal woven mesh boasts high tensile strength, impact resistance and is not prone to deformation.
Corrosion & high temperature resistance: Stainless steel, copper and other materials can withstand acid-alkali environments and high temperatures ranging from -100℃ to 500℃.
Precise mesh & controllable permeability: Stable filtration and screening precision, with high gas and liquid pass rate.
Easy to process & customizable: Can be cut, welded, bent, edged and stamped into desired shapes.
Long service life & easy to clean: Smooth surface prevents clogging and allows repeated cleaning.
Attractive appearance & good permeability: Decorative mesh offers a premium texture, ensures light transmission and ventilation without blocking the line of sight.
Uses and Application Scenarios
Industrial Filtration and Screening (Most Mainstream)
Protection and Fencing
Load-bearing and Transportation
Decoration and Art
Selection Points
- For filtration/screening: Choose plain weave/twill weave/Dutch weave mesh, with focus on mesh count, precision and corrosion resistance of materials.
- For protection/load-bearing: Choose crimped wire mesh/chain link mesh, paying attention to wire diameter, mesh size and tensile strength.
- For high-temperature/acid-alkali environments: Prioritize 316L stainless steel and nickel-titanium alloy.
- For food/pharmaceutical applications: Must use 304/316 food-grade mesh with smooth surface, easy cleaning and no burrs.
Packing:

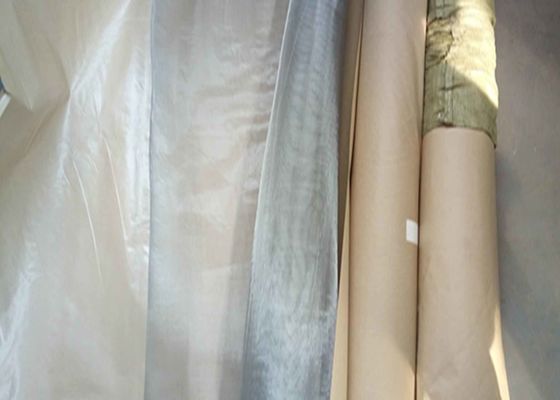

In rolls, wrapped with waterproof paper then covered with hessian cloth. Special packing may be arranged if necessary.
