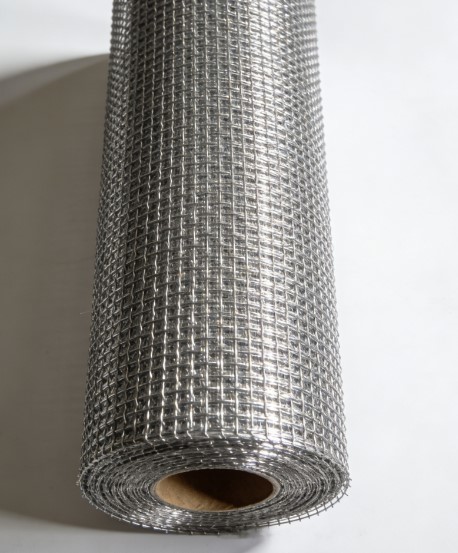

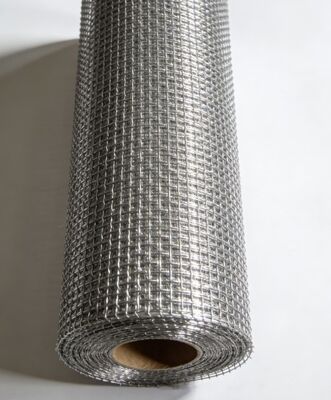

Stainless Steel Woven Wire Mesh with 9Mesh
Dettagli
| Materiale | Acciaio inossidabile | Misurare | 1x30m |
|---|---|---|---|
| numero di maglia | 9 maglie |
Descrizione di prodotto
Stainless Steel Woven Wire Mesh with 9Mesh
Ultra-Precise Sieving & Barrier Solution for Multi-Industry Needs
Product Overview
9 mesh stainless steel woven wire mesh is a robust, high-consistency product engineered for fine particle separation, material grading, and protective applications where accuracy and longevity are non-negotiable. Made from high-purity 304, 316, or 316L stainless steel billets, this mesh undergoes precision weaving and heat treatment to enhance tensile strength and corrosion resistance, outperforming standard mesh in harsh operational conditions.
Key Specifications
| Mesh Density | 9 openings per linear inch |
|---|---|
| Aperture Tolerance | ±0.05mm (2.15-2.25mm typical, dependent on wire gauge) |
| Wire Diameter Options | 0.3mm-0.85mm (thicker wires for heavy-load scenarios, thinner for high-flow filtration) |
Material Performance
304 Grade
Rust-proof, food-contact safe, ideal for dry/wet industrial environments
316/316L Grade
Acid/alkali resistant, perfect for marine, chemical, and wastewater treatment
Supply Formats & Weave Options
Supply Formats: Cut-to-size sheets (1m*2m, 1.22m*2.44m) or continuous rolls (max width 3m, customizable length)
Weave Options: Plain weave (symmetrical aperture for uniform screening) / Reverse Dutch weave (enhanced structural rigidity for high-pressure filtration)
Core Features
- Unmatched Aperture Consistency: Computerized weaving ensures no aperture deviation, guaranteeing accurate particle sorting and reducing product contamination risks.
- Enhanced Durability: Heat-treated surface resists wear, deformation, and chemical erosion, extending service life by 30% compared to non-treated mesh.
- Easy Installation & Maintenance: Lightweight yet sturdy, can be directly fixed with bolts or welded into frames; smooth surface prevents clogging and allows quick cleaning.
- Eco-Friendly & Recyclable: 100% stainless steel composition is fully recyclable, complying with global environmental standards for industrial materials.
Target Applications
- Fine grading of cement, sand, and mineral powders in construction
- Filtration of syrups, juices, and edible oils in food & beverage processing
- Protective fencing for aquaculture ponds, poultry coops, and garden enclosures
- Ventilation grilles for HVAC systems, electrical cabinets, and marine equipment
- Laboratory sample preparation and particle size analysis
