Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing

  • Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
  • Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
  • Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
Luogo di origine Anping della Cina
Marca QIANPU
Certificazione ISO
Quantità di ordine minimo 5 rotoli
Prezzo negotiable
Imballaggi particolari Interno con un tubo di carta, esterno con il film plastico o la carta impermeabile, poi in caso o pa
Tempi di consegna UNA SETTIMANA
Termini di pagamento T/T, Western Union, L/C
Dettagli
Materiale SS304, SS304L, SS316, SS316L Tipo di tessitura Tessitura normale / Tessitura saia / Tessitura olandese
Diametro del filo 0,15 mm – 2,0 mm Conta mesh 2 – 400 maglie
dimensione di apertura 0,038 mm – 10 mm Trattamento superficiale Passivazione Ricotta/Decapante Brillante
Misura standard Rotolo da 1m×30m (personalizzabile) Applicazione Filtrazione per alimenti e bevande, setacciatura farmaceutica, filtri industriali, recinzioni edili,
Evidenziare

food grade stainless steel wire mesh

,

304/316 stainless steel filtration mesh

,

woven wire mesh for fencing
Lasciate un messaggio
Descrizione di prodotto
Plain Dutch Weave has a specialized structure with larger warp wires than weft wires. It is woven by interlacing a few warp wires with tightly packed weft wires, forming a dense mesh with invisible apertures. Its plain pattern ensures even wire distribution, resulting in a smooth, easy-to-clean surface.
Twill Dutch Weave has an upgraded structure, also with larger warp wires than weft wires. Tightly packed weft wires are woven in a twill pattern (each weft passes over two warp wires and under one, or vice versa), creating a dense mesh with subtle diagonal textures, enhanced rigidity and wear resistance.

- *Material*: SS304 / SS304L / SS316 / SS316L
- *Weaving Type*: Plain Weave / Twill Weave / Dutch Weave

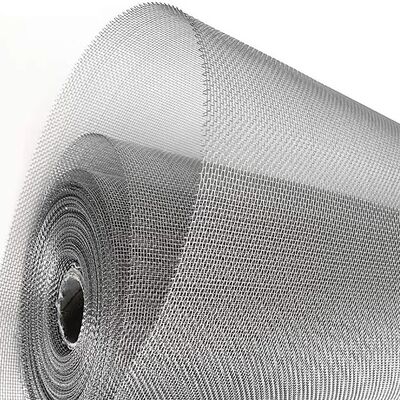

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 0



Main Applications
Our stainless steel woven wire mesh is widely used in:
- *Food & Beverage*: Bakery equipment, beverage filtration, food processing machinery
- *Pharmaceutical*: Medicine sieving, clean room filtration, pharmaceutical machinery components
- *Construction*: Concrete reinforcement, building facades, security window guards
- *Industrial & Security*: Machine guards, liquid filtration, mine sieving, pet enclosures

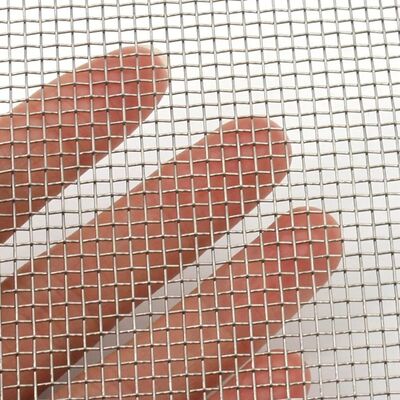

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 1Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 2



Packing:

In rolls, wrapped with waterproof paper then covered with hessian cloth. Special packing may be arranged if necessary.

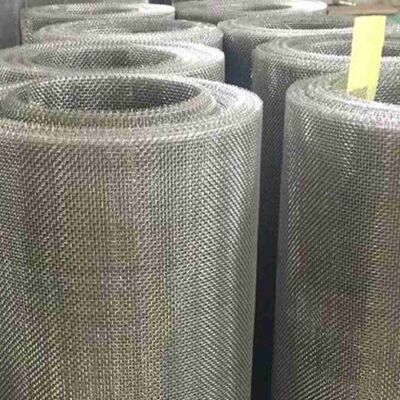

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 3
